Product Families
PRO_Web_Index_1264x570px_BIONIQ.jpg PRO_Web_Index_1264x570px_BIONIQ.jpg

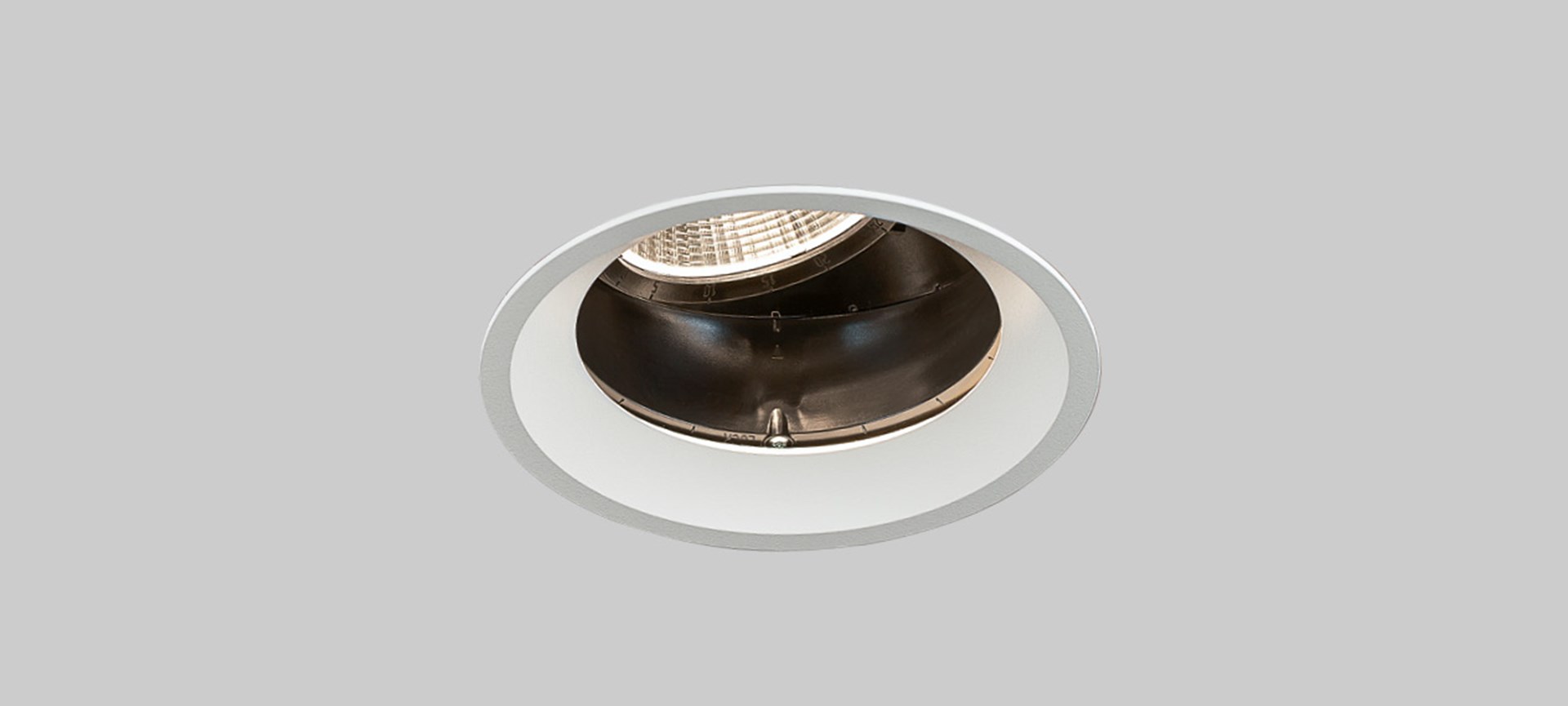

BIONIQ

NATURALLY TECHNICAL

BIONIQ is pure technical ingenuity: The recessed LED spotlights can be turned and tilted to the desired position almost simultaneously using a concentric system. The EAS (Encapsulated Adjustment System) developed by PROLICHT allows 355° of rotation and 30° of tilt, without any externally visible change in position. The angle of the spotlight can be accurately adjusted. The fully encapsulated system prevents any rearward light scattering and places the beam of light precisely where you want it. Professional lighting can be managed effortlessly with BIONIQ.

Additional, intelligently technical features mean that BIONIQ is extremely easy to install and maintain – ideal for intensive use in public spaces. Precise reflector technology and the recessed light source make BIONIQ spots particularly low glare. A wide range of variants such as ADJUSTABLE, PINHOLE or WALLWASH, together with exterior finishes in 25 PROLICHT colours provide a bespoke solution for every design.

The spotlights are fitted with latest generation LEDs ranging from 850 to 3080 lumens. Depending on the used driver lower or intermediate values are possible. BIONIQ also has a NATURAL DIM function which lowers the colour temperature as brightness is reduced, creating a pleasant, warm light. To cover the degree markings that can be read in the system, a cover is available, finished in a choice of 25 PROLICHT colours or chrome as well as in IP54 versions. Tunable WHITE or special leds are available for specific lighting solutions.



BIONIQ suitable for

Bioniq One Family reigns Supreme.jpg Bioniq One Family reigns Supreme.jpg
BIONIQ

ONE FAMILY REIGNS SUPREME

Extremely easy handling, high light output and precise illumination make BIONIQ a favorite for lighting designers.

ONE LOCK SYSTEM | The ONE-LOCK system allows to lock the postion of the horizontal rotation and the vertical tilting with a single screw.

MOUNTING UNIT | The leaf springs of the mounting unit ensure an easy and permanent mounting in ceilings from 10 to 15 mm.

ENCAPSULATED ADJUSTMENT SYSTEM | BIONIQ can be adjusted precisely due to the Encapuslated Adjustment System.

PROLICHT LENS PACK | PROLICHT lights can be adapted to meet personal needs or challenging room situations in the best possible way. PROLICHT offers an efficient possibility to do so with lenses from the PROLICHT LENS PACK – filters or honeycomb.

COVER | Recessed spotlights ADJUSTABLE, PINHOLE or WALLWASH (Ø 130 only) of the same type (e.g. ROUND) use the same ceiling cut-out. These three variants can subsequently be used in every available cut-out.

DEEP | The DEEP version where the LED sits back 50 mm is mounted on a higher and special housing.

Bioniq Encapsulated Adjustment System.jpg Bioniq Encapsulated Adjustment System.jpg
BIONIQ

ENCAPSULATED ADJUSTMENT SYSTEM

The basic idea behind BIONIQ came from the lighting designer’s simple desire to avoid losing light behind the pinhole cover during the adjustment process. This was only possible by moving the virtual tilting point below the ceiling. An intelligent EAS (encapsulated adjustment system) was the answer to this challenge. The system allows precise rotation of 355° and a tilt of 30° (adjustable) or 10° (semi adjustable).

Bioniq One For All.jpg Bioniq One For All.jpg
BIONIQ

ONE FOR ALL

Two diameters (100 and 130 mm) – enormous scope for redesigning interiors.

Bioniq Zero Light Leakage.jpg Bioniq Zero Light Leakage.jpg
BIONIQ

ZERO LIGHT LEAKAGE

The light-proof back of selected PROLICHT spotlights ensures that the beam of light only falls exactly where it is positioned. Diffuse losses and unpleasant insights into the interior of the ceilings are a thing of the past. A major advantage for use in acoustic or perforated ceilings, or even shelves.

BIONIQ spotlights are an ideal solution for perforated acoustic ceilings: There will be no unwanted glow of light through the ceiling openings with this clearly delineated, forward angled cone of light.

BACKLIGHT vs. NO LIGHT LEAKAGE

Bioniq One Lock.jpg Bioniq One Lock.jpg
BIONIQ

ONE LOCK

The ONE-LOCK system allows to lock the position of the horizontal rotation and the vertical tilting with a single screw – fast and efficient. A real plus in case of multiple spots. A single screw locks the positon of BIONIQ (rotation and tilt). The screw gets fastened from below which thightens the brown anchorage.


Bioniq Precise Adjustment.jpg Bioniq Precise Adjustment.jpg
BIONIQ

PRECISE ADJUSTMENT

Indicating a precise degree angle for each move-ment enables accurate light.


BIONIQ

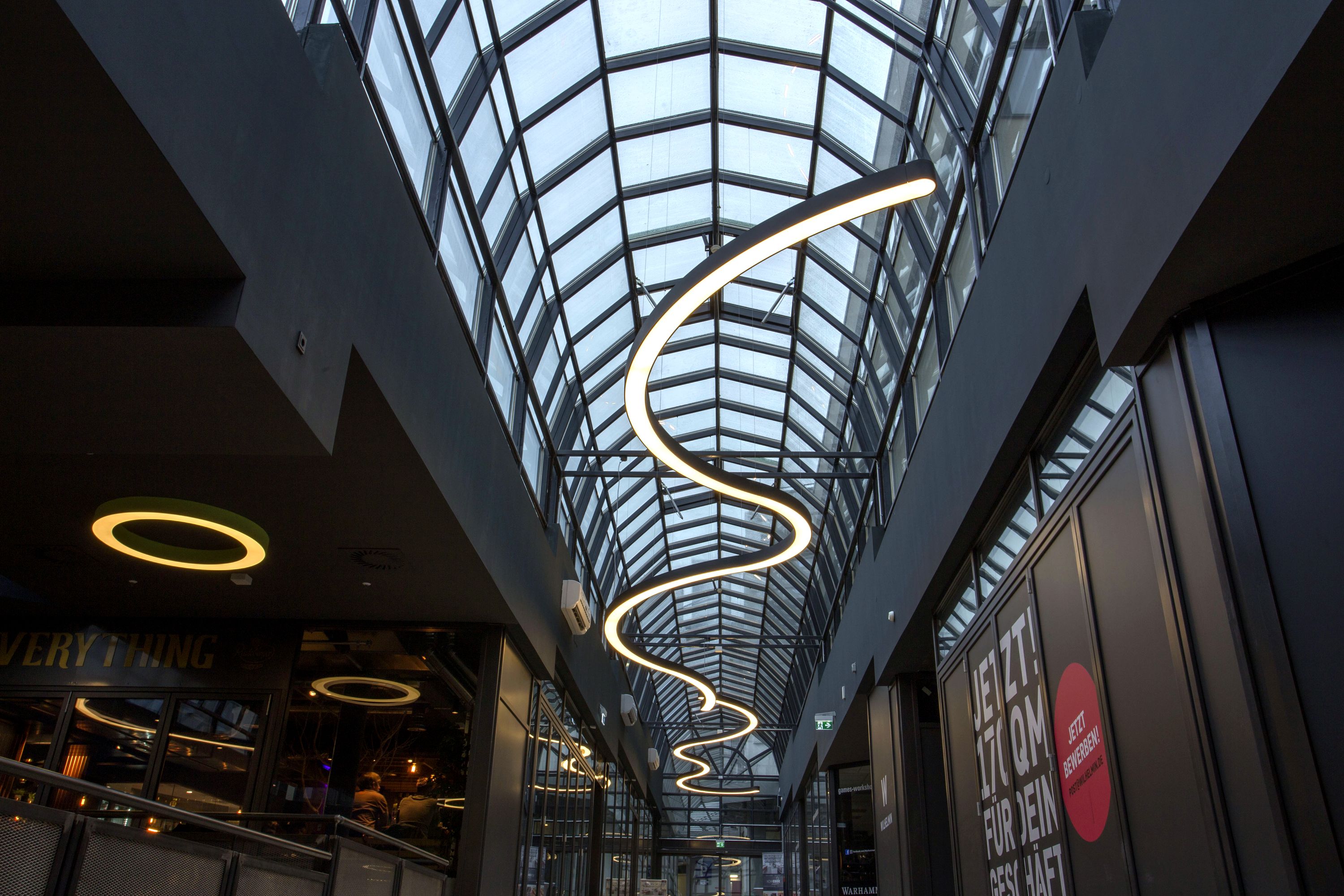

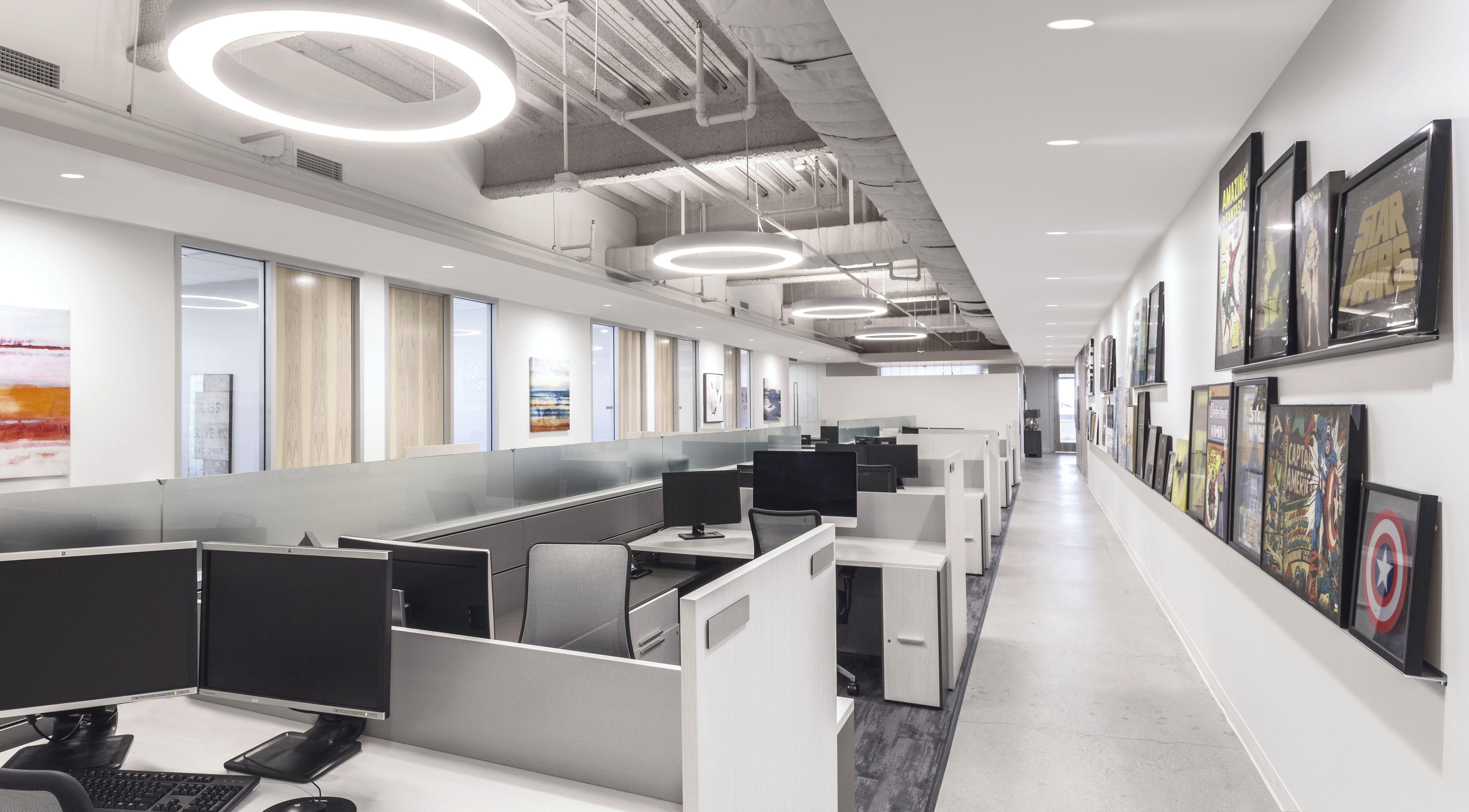

References

;
