Product Families

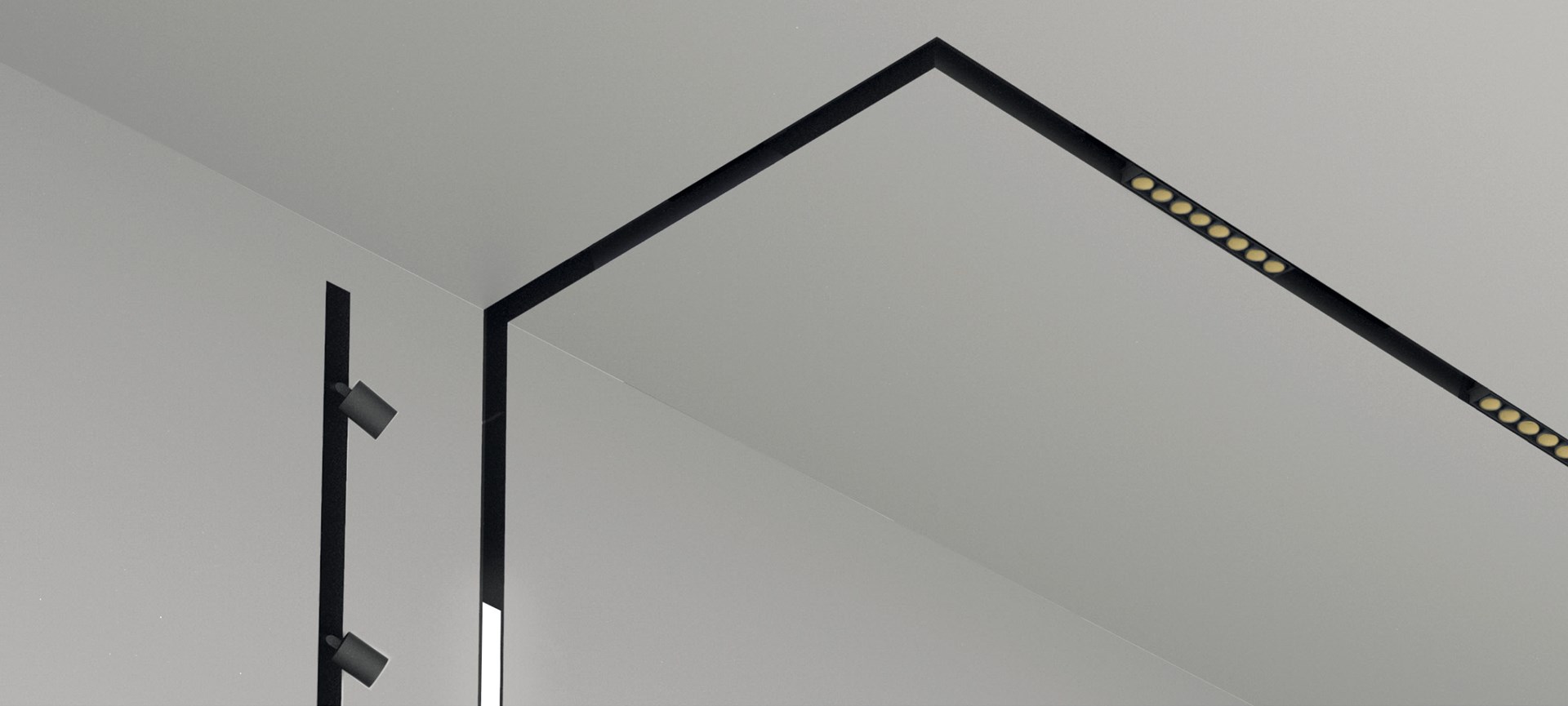

PRO_Web_Index_1264x570px_HYPRO.jpg PRO_Web_Index_1264x570px_HYPRO.jpg
HYPRO

HYBRID FLEXIBILITY

HYPRO creates unique new levels of lighting structure and is available in two versions: HYPRO 30 & HYPRO 40. The individually configurable HYPRO 40 can run around and across walls and ceilings, creating three-dimensional continuous lines of light. Both general and accent lighting can be integrated into the HYBRID profile at the same time. LOW GLARE modules in downlights and linear modules characterise the HYPRO 40 profile. Adjustable spotlights in different sizes with a range of lenses and lumen packages are available to complete the family. Installation options include recessed, surface mounted and suspended, and the profile can be installed in walls or ceilings, defining design lines in the building geometry.

A surface mounted or suspended slim and minimalistic HYPRO 30 profile for magnetically installed hybrid light fittings (spots and general linear lighting) ensures tool-free mounting or repositioning and offers amazing freedom for architects. The inner side of the HYPRO 30 is fitted with 48 V conductors and is always black inside, while the outside of the profile is available as standard in 25+5 unique PROLICHT colours to blend perfectly with any interior.

The great flexibility of the HYPRO range ensures perfectly tailored lighting concepts for residential, retail, hospitality, corporate and public applications.



HYPRO suitable for

PRO_Web_Index_1264x570px_HYPRO.jpg PRO_Web_Index_1264x570px_HYPRO.jpg
HYPRO

TAILORED LIGHTING LINES

Hybrid U-profiles that can be configured individually in the room make HYPRO a master of flexibility for general and accent lighting. LED inserts, WALLWASHERS and SUPERSPOTS can be easily integrated into the profile, available in a choice of colours.

HYBRID SYSTEM | The individually configurable HYPRO 40 can run up around and across walls and ceilings, creating three-dimensional continuous lines of light with a combination of spots, wallwash, coloured korona inserts and linear lighting. This flexibility allows perfectly tailored lighting concepts.

48 V MAGNETIC MODULES | All HYPRO 30 modules can be installed and repositioned tool-free, according to the designer’s wishes, using magnetic modules. All modules are individually dimmable.

TOOL-FREE INSTALLATION | A surface mounted or suspended slim and minimalist HYPRO 30 profile for magnetically installed hybrid light fittings (spots and general linear lighting) ensures tool-free mounting or repositioning. Freedom is possible with the HYPRO 40 where the modules are fixed onto a movable locking system.


PRO_Web_Index_1264x570px_HYPRO.jpg PRO_Web_Index_1264x570px_HYPRO.jpg
HYPRO

48 V MAGNETIC LUMINAIRES WITH TOOL-FREE ADJUSTMENT

All HYPRO 30 modules can be installed and repositioned according to the designer’s requirements without tools, using magnetic modules. In addition to a mechanical connection, the magnetic fixation of the different modules guarantees an electrical connection with the two integrated 48V conductors in the HYPRO 30.


PRO_Web_Index_1264x570px_HYPRO.jpg PRO_Web_Index_1264x570px_HYPRO.jpg
HYPRO

HYPRO 30 | DIRECT / INDIRECT ILLUMINATION

An optional uplight LED module is available for the HYPRO 30. The up- and downlight sections work completely independently of each other and can be controlled separately. The upper section works at 24V.

PRO_Web_Index_1264x570px_HYPRO.jpg PRO_Web_Index_1264x570px_HYPRO.jpg
HYPRO

HYPRO 30 | POWERLINE COMMUNICATION

Thanks to the miniaturisation of the integrated electronics, all magnetic modules (spotlights and linear modules) are DALI dimmable, which offers amazing added value for residential and hospitality applications. A centralised DC-String Driver gives the HYPRO range remarkable freedom. The DC string still offers full control of individual track luminaires by sending commands via the DC power lines. A Constant Light Output (CLO) function compensates for natural decline by constantly increasing the output current of the LED throughout its life.


PRO_Web_Index_1264x570px_HYPRO.jpg PRO_Web_Index_1264x570px_HYPRO.jpg
HYPRO

HYPRO 30 | BI-COLOURED 48 V TRACK

The HYPRO 30 is always black on the inside, while the outside is available in a choice of any of the 25+5 standard PROLICHT colours, complementing any interior design concept. The variety of spots with different lenses and diameters can be selected in the same profile colour to blend harmoniously into individual colour schemes.

Hypro 40 low glare downlights.jpg Hypro 40 low glare downlights.jpg
HYPRO

LOW GLARE DOWNLIGHTS

The hybrid profile HYPRO 40 can be equipped with the well-known MAGIQ modules with extremely low glare and a cut-off angle of 21 degrees. Optional KORONA CONES create an eye-catching effect. A smart interface ensures easy installation of the modules and enables simple repositioning in the profile.


Hypro 40 Linear Wallwash Integration.jpg Hypro 40 Linear Wallwash Integration.jpg
HYPRO

LINEAR WALLWASH INTEGRATION

The integration of a linear wallwasher enhances the hybrid profile with its elegant and minimalistic design and meets multiple lighting requirements. The MAGIQ WALLWASH (VERTICAL BOOST) is a solution for high ceilings while the glare-free MAGIQ HOLLOW WALLWASH is a perfect flush solution for standard ceilings.


Hypro 40 defining 3d geometrical lines.jpg Hypro 40 defining 3d geometrical lines.jpg
HYPRO

DEFINING 3D GEOMETRICAL LINES

The minimalist lines of HYPRO 40 blend perfectly with any architectural context. With a different set of connectors, the profile can run up around and across walls and ceilings, integrating harmoniously. Linear couplers, vertical and horizontal connectors and T- and cross-connectors are superbly engineered to avoid any light leakage. In case of suspended profiles, a spring clip makes it possible to move the suspension wire in any direction.


Hypro 40 Coloured Channel.jpg Hypro 40 Coloured Channel.jpg
HYPRO

COLOURED CHANNEL

A great eye-catcher for the HYPRO 40 is the slightly deeper aluminium cover, which is available in 25+5 PROLICHT colours and your choice of length.


Hypro 40 rico.jpg Hypro 40 rico.jpg
HYPRO

RICO LINE

With experienced in-house expertise, PROLICHT has designed a glare-free RICO reflector (reflector with integrated cut-off), taking the HYPRO 40 to the next level of profile lighting. Sophisticated reflector technology creates very low glare and offers optimal visual comfort. Besides a better LOR, the innovative RICO LINE presents a noticeably higher light intensity in the centre compared to a regular opal diffuser. The perfect solution for offices and workplaces.


HYPRO-X 40_Klassenzimmer SE_lr.jpg HYPRO-X 40_Klassenzimmer SE_lr.jpg
HYPRO

HYPRO-X

The latest version of the HYPRO 40 profile system - called HYPRO-X - is now also available in the pendulum version with indirect ceiling lighting. The HYPRO-X profile system is only 2 cm higher and compatible with all existing HYPRO modules. The indirect light can be controlled individually and independently of the direct lighting.



;
